Bitumen, while perhaps not a household name, is an indispensable material in building the infrastructure that underpins modern life. From the roads we drive on to the roofs over our heads, bitumen’s unique properties make it a cornerstone of construction and various industrial applications. However, the transport of bitumen presents a unique set of challenges. This viscous substance requires meticulous handling and precise temperature control during transit to maintain its integrity and usability. Efficient and safe Bitumen Transport is therefore crucial for ensuring timely project completion and maintaining the quality of this vital material.
What is Bitumen and Why is it Crucial to Modern Infrastructure?
Bitumen is a complex hydrocarbon material, black or dark brown in color and highly viscous. It is derived from the refining process of crude oil, specifically from the heavier fractions. Often confused with asphalt (which is a mixture of bitumen and mineral aggregates), bitumen itself acts as the crucial binding agent within asphalt. Its exceptional adhesive and waterproofing qualities make it invaluable across numerous sectors.
The most widely recognized application of bitumen is in road construction. As the primary component of asphalt pavement, bitumen ensures durable, smooth, and weather-resistant road surfaces for highways, city streets, and airport runways. Beyond roadways, bitumen plays a vital role in roofing materials, providing waterproofing and longevity to buildings. It is also employed in a variety of sealant products, protecting structures from moisture damage and environmental wear. Industrially, bitumen serves as a raw material in adhesives, paints, and even as a component in specialized lubricants for automotive and industrial machinery. Its inherent durability and resistance to a wide range of environmental factors solidify bitumen’s position as a cornerstone material in contemporary construction and infrastructure development.
Furthermore, the versatility of bitumen is enhanced through modification. Different types of bitumen are produced by incorporating additives to tailor its properties for specific uses. A prime example is Polymer Modified Bitumen (PMB). PMB is created by adding polymers to conventional bitumen, significantly improving its performance characteristics. These polymers, such as styrene-butadiene-styrene (SBS), enhance elasticity, durability, and resistance to temperature extremes. PMB is particularly advantageous in high-stress applications such as heavily trafficked bus lanes and airport runways, where pavements endure substantial loads and harsh conditions.
The Critical Role of Temperature in Bitumen Transport

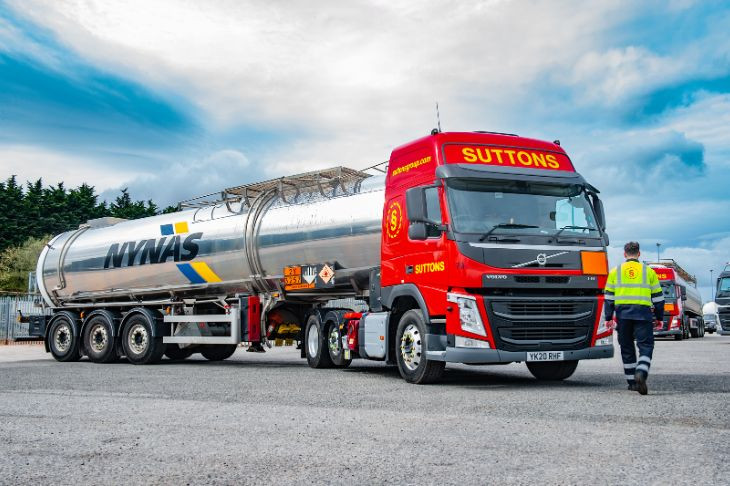

bitumen tankers in the sun
Maintaining precise temperature control is paramount in bitumen transport. Bitumen’s physical state is heavily influenced by temperature; it transitions from a fluid liquid at elevated temperatures to a semi-solid or solid state as temperatures decrease. For efficient and safe handling, bitumen must be transported at high temperatures, typically within the range of 140 to 220 degrees Celsius (284 to 428 degrees Fahrenheit).
This elevated temperature range is crucial for several reasons:
- Ensuring Fluidity: Bitumen’s viscosity increases dramatically as it cools. Maintaining high temperatures ensures it remains sufficiently fluid for pumping and transfer operations. If the temperature drops too low, the bitumen can solidify, leading to blockages in pipelines and tankers, causing significant delays and operational challenges.
- Facilitating Efficient Pumping and Transfer: The reduced viscosity at higher temperatures allows for smoother and more efficient pumping of bitumen. This is essential for loading and unloading processes, as well as for continuous flow through pipelines during bulk transport.
- Optimizing Application: When bitumen reaches its destination, often for use in asphalt production or other industrial processes, it needs to be readily workable. Maintaining the correct temperature ensures that it retains the desired fluidity for uniform and consistent application in road paving or manufacturing processes.
Navigating the Bitumen Transport Process: A Step-by-Step Guide

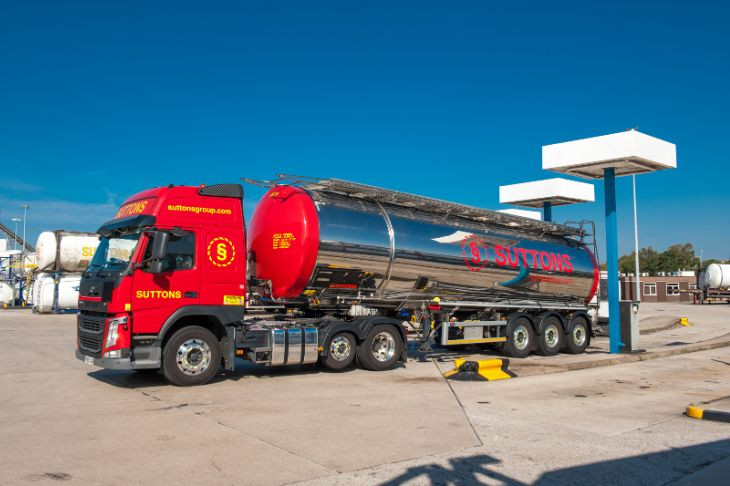

bitumen tanker
The process of bitumen transport is a carefully orchestrated operation involving specialized equipment, rigorous procedures, and strict adherence to safety regulations. Here’s a detailed guide to the key stages:
Specialized Containers and Tankers
Bitumen is exclusively transported in purpose-built containers and tanker trucks designed to maintain the high temperatures required to keep the material in a liquid state. These tankers are not ordinary; they are sophisticated pieces of engineering equipped with:
- Insulation: Heavy-duty insulation layers surround the tank to minimize heat loss to the environment, helping to maintain the bitumen’s temperature throughout the journey.
- Heating Systems: Integrated heating systems are essential for counteracting heat loss and, if necessary, raising the bitumen’s temperature. These systems can be electric, steam-based, or utilize hot oil circulation.
- Robust Construction: Bitumen tankers are built to withstand the stresses of transportation and the high temperatures they carry, ensuring the safety and integrity of the cargo.
These specialized containers can be transported via various modes, including road, rail, and sea. It’s common to see bitumen tankers arriving at ferry terminals from international locations, highlighting the global nature of bitumen transport. They are also designed for efficient transfer to railway networks and onward transport by trucks to their final destinations.
Temperature Management Systems
Maintaining the correct temperature is not just important – it’s critical. If bitumen cools below its specified temperature range, it can become unusable, leading to significant material waste and project delays. Temperature control systems in bitumen tankers are therefore sophisticated and reliable. Common heating methods include:
- Electrical Heating Coils: These systems use electric resistance to generate heat, offering precise temperature control.
- Steam Heating Coils: Utilizing steam circulated through coils within the tank, this method provides efficient and even heating. Typically, steam heating can maintain temperatures around 100 degrees Celsius (212 degrees Fahrenheit).
- Hot Oil Heating Systems: For higher temperature requirements, hot oil heating systems circulate heated oil through coils, capable of reaching temperatures up to 300 degrees Celsius (572 degrees Fahrenheit).
The selection of the heating system depends on the type and grade of bitumen being transported and the specific temperature maintenance requirements.
Loading and Unloading Protocols
Loading and unloading bitumen are critical transfer points where contamination and safety risks must be meticulously managed. Key protocols include:
- Cleanliness is Paramount: Before loading, the storage tank, tanker truck, or container must be thoroughly cleaned and inspected to ensure it is free from any contaminants. Even trace amounts of impurities can negatively impact bitumen quality.
- Water Contamination Risk: Water is a particularly problematic contaminant for bitumen. If water comes into contact with hot bitumen, it can trigger a dangerous chemical reaction, causing the bitumen to foam and expand rapidly. This reaction can create pressure build-up within the tanker, potentially leading to hazardous situations. In such cases, the tanker may need to be left to stand until the reaction fully subsides.
- Safe Working Space: Unloading areas must be designated as safe working zones, with adequate space for maneuvering and emergency access.
- Bitumen Discharge Permit (BDP): Before unloading commences, a Bitumen Discharge Permit (BDP) must be completed jointly by the driver and a representative from the receiving site. This permit checklist ensures that all safety protocols are in place and understood by both parties.
Strategic Route Planning and Logistics
Efficient bitumen transport relies heavily on meticulous route planning. The goal is to minimize transit time to reduce the risk of cooling and increased viscosity. Key considerations in route planning include:
- Minimize Transit Time: Shorter routes are preferred to maintain bitumen temperature and reduce fuel consumption.
- Specialized Tanker Design: Modern bitumen tankers are engineered to minimize heat loss over extended journeys. However, proactive route planning remains crucial.
- Regulatory Compliance: Route planning must take into account local regulations and restrictions, particularly those related to the transport of hazardous materials. In the UK, this falls under the Carriage of Dangerous Goods and Use of Transportable Pressure Equipment Regulations (CDG) 2009.
Environmental Protection and Spill Prevention

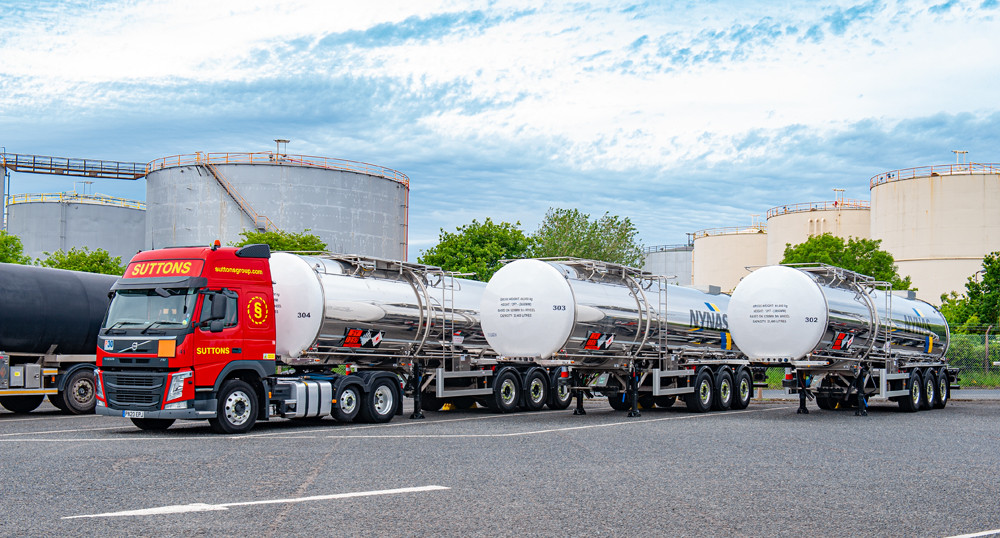

DSC 8139
Preventing spills and environmental contamination is a top priority in bitumen transport. Stringent procedures are in place to mitigate these risks:
- Pre-Discharge Checks: Drivers are required to thoroughly inspect hoses and valves for any signs of wear or damage before commencing discharge.
- Valve Management: Valves are carefully operated to prevent leaks. Initially, only necessary valves are opened to check for leaks before the full transfer process begins.
- Continuous Monitoring: During the discharge, the transfer process must be constantly monitored for any leaks or spillages.
- Emergency Stop Procedures: In the event of a leak, the bitumen transfer must be stopped immediately to contain the spillage and prevent further environmental impact.
- Delivery Methods: Bitumen is typically discharged using one of three methods:
- Ground-Based Pump: The receiving site uses a pump to draw bitumen from the tanker.
- Pressure Discharge: Pressure is applied within the tanker to push the bitumen out. This is the most common method in the UK, used at approximately 70% of sites.
- Gravity Discharge: Utilizing gravity to drain the bitumen, this method is less common for large-scale transfers.
- Safety Shower Facilities: Before unloading, drivers must locate and verify the functionality of on-site safety shower facilities, ensuring they are within 20 meters of the unloading area for immediate use in case of bitumen contact with skin.
Essential Documentation and Compliance
Comprehensive documentation is vital throughout the bitumen transport process. Accurate records ensure regulatory compliance, quality control, and efficient logistics. Key aspects of documentation include:
- Regulatory Compliance: Bitumen transport is governed by strict regulations and guidelines concerning the handling and movement of hazardous materials. Proper documentation demonstrates adherence to these rules, minimizing legal risks and ensuring safety. Refer to resources like the Eurobitume Safe Delivery Guide for detailed information on these regulations.
- Quality Control and Traceability: Documentation provides a complete record of the bitumen’s origin, quality, and specifications. This traceability is essential for quality assurance, allowing for quick identification and resolution of any quality issues.
- Logistics Coordination: Clear documentation of quantities, batch numbers, and transport routes streamlines coordination between suppliers, transporters, and end-users, preventing delays and improving overall operational efficiency.
Specialized Training and ADR Certification
Personnel involved in bitumen transport must undergo specialized training to handle this hazardous material safely and competently. Key training requirements include:
- ADR Vocational Training Certificate (VTC): Every individual involved in the transport and delivery of bitumen must hold an ADR Vocational Training Certificate (VTC) relevant to tank class transport. This certification, mandated by the European Agreement concerning the International Carriage of Dangerous Goods by Road (ADR), demonstrates competency in handling dangerous goods. Drivers are required to carry their ADR VTC at all times. Information on obtaining an ADR VTC can be found on government websites.
- Site-Specific Onboarding: Beyond ADR certification, drivers must receive a site-specific onboarding process at each delivery location. This onboarding covers operational procedures, site-specific safety protocols, and emergency response procedures. This onboarding must be documented by the customer’s personnel to ensure accountability.
Understanding the Hazards and Safety Measures in Bitumen Transport
bitumen truck
Safety is the paramount concern in bitumen transport. Bitumen at transport temperatures poses significant hazards, requiring rigorous safety measures.
- Personal Protective Equipment (PPE): Anyone involved in bitumen handling, especially within 6 meters of a delivery, must wear appropriate PPE. This includes:
- Gloves resistant to hot bitumen.
- Safety glasses to protect eyes from splashes.
- Full face shield for comprehensive face protection.
- Neck cape to shield the neck from hot bitumen.
- All PPE must be regularly inspected, cleaned, and replaced as necessary. Both the individual user and the company providing the PPE share responsibility for ensuring PPE is in good condition.
- Dangerous Goods Safety Advisor (DGSA): Compliance with ADR regulations necessitates the engagement of a Dangerous Goods Safety Advisor (DGSA) by both hauliers and bitumen suppliers. DGSAs are experts in dangerous goods transport regulations and ensure compliance, safety, and risk management. Information on DGSAs and their role can be found through organizations specializing in dangerous goods safety.
- ADR Vehicle Markings and Equipment: Vehicles transporting bitumen must display ADR-mandated markings to clearly indicate the hazardous nature of the cargo. They must also be equipped with specialized safety equipment as stipulated by ADR regulations, such as fire extinguishers and emergency equipment.
What are ADR Regulations?
ADR regulations are the cornerstone of safe international bitumen transport by road. The European Agreement concerning the International Carriage of Dangerous Goods by Road (ADR) is a framework developed by the United Nations Economic Commission for Europe (UNECE) to standardize the safe transport of hazardous materials across international borders. ADR aims to protect the public, environment, and transport workers by establishing comprehensive rules for the classification, packaging, labeling, and transportation of dangerous goods.
Key aspects of ADR regulations include:
- Classification: ADR meticulously categorizes hazardous substances based on their specific risks, ensuring appropriate handling and transport procedures for each class.
- Packaging: ADR specifies stringent packaging requirements designed to safely contain hazardous materials during transport, preventing leaks or spills even under demanding conditions.
- Marking and Labelling: Standardized markings and labels, including hazard diamonds and UN numbers, must be prominently displayed on packages and vehicles to clearly communicate the nature and risks of the transported goods to emergency responders and handlers.
- Documentation: ADR mandates specific documentation, including transport documents and written instructions, to accompany hazardous materials during transit. This documentation provides crucial information for all parties involved in the transport chain.
- Vehicle Requirements: ADR sets safety standards for vehicles used to transport dangerous goods. These standards cover vehicle construction, equipment (like fire extinguishers and warning devices), and markings to ensure safe operation.
- Driver Training: ADR requires drivers of vehicles carrying hazardous materials to undergo specialized training and obtain an ADR Vocational Training Certificate (VTC). This training equips drivers with the knowledge and skills to handle dangerous goods safely and respond effectively in emergency situations.
Choosing the Right Bitumen Transport Partner: Expertise and Reliability
When it comes to bitumen transport, selecting a logistics partner with proven expertise and a strong safety record is not just beneficial – it’s essential. In the UK, Suttons Group stands out as a leading provider with extensive experience in the safe and efficient transport of bitumen and other hazardous materials.
Suttons Group’s key strengths in bitumen logistics include:
- Industry Experience: Years of experience in handling and transporting bitumen have equipped Suttons Group with in-depth knowledge of best practices and potential challenges.
- Exemplary Safety Record: A strong commitment to safety is paramount in hazardous materials transport. Suttons Group’s proven safety record provides assurance and minimizes risk.
- Vast Fleet and Advanced Technology: Suttons Group operates a large, modern fleet of specialized bitumen tankers equipped with advanced temperature control technology, ensuring reliable and consistent temperature maintenance throughout transit.
- Comprehensive Service Offering: From route planning and regulatory compliance to specialized driver training and emergency response protocols, Suttons Group offers a complete suite of services to manage every aspect of bitumen transport.
For businesses working with bitumen, partnering with an experienced and reputable logistics provider like Suttons Group offers peace of mind and ensures the safe, compliant, and timely delivery of this critical material. If you require reliable and expert bitumen transport solutions, reaching out to the team at Suttons Group is a sound first step.
Conclusion
Safe and efficient bitumen transport is a complex undertaking, demanding meticulous planning, specialized equipment, rigorous safety procedures, and strict adherence to regulations. From maintaining critical temperatures to ensuring comprehensive documentation and training, every step in the process is crucial for preserving the quality of bitumen and protecting people and the environment. Choosing a logistics partner with proven expertise and a commitment to safety, like Suttons Group, is vital for navigating these complexities successfully. As bitumen remains a cornerstone of modern infrastructure, its reliable and safe transport will continue to be an essential element in building and maintaining the world around us.
